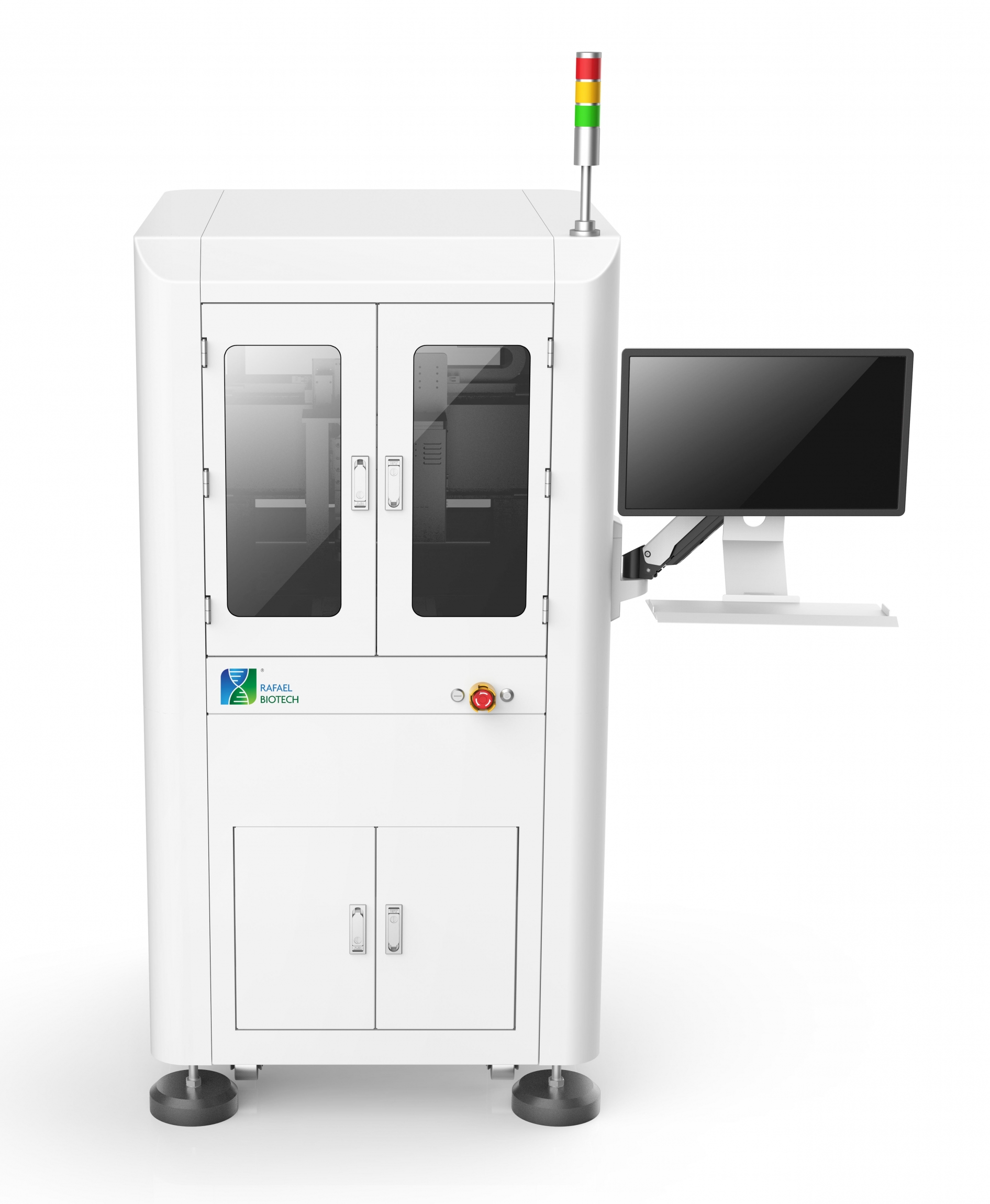

Robotic Nanoliter Dispenser

Dispensing and functionalization of plasmonic biosensor arrays with fully automated and speedy operation

Specifications³:

64 plasmonic biochips with total of 9216 microwells can be installed at once

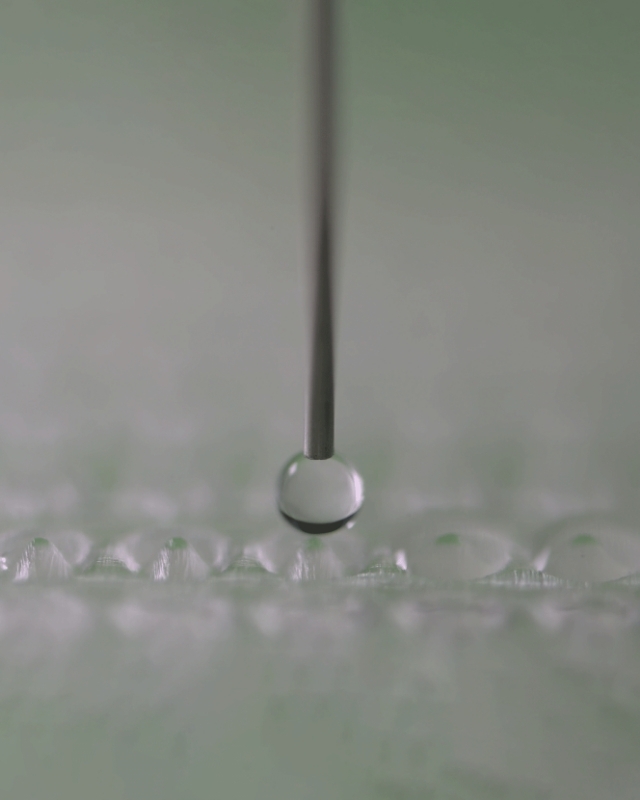

< 100 nanoliters functionalization volume for each microwell
Two 96-wells or 386-wells micro plates are installed as reagent and flushing buffer holders
Dispensing time is approximately 1 second for each flow cell

Technical specifications and characteristics²

Capacity	64 plasmonic biochips in 8 columns and 8 rows
Sources	96-wells or 384-wells micro plate with 200 uL or 40 uL per well
Dispensing modes	1-to-1 dispensing (one source to one flow cell on multiple chips), 1-to-multi dispensing (one source to multiple flow cells on multiple chips)
Maximum speed	X = 750 mm/s, Y = 750 mm/s, Z = 400 mm/s
Maximum drive range	300 x 350 mm, Z = 100 mm
Spotable Area	250 x 300 mm
Positioning accuracy	±2 um with compensation
Positioning repeatability	±1 um with compensation
Operation mode	All electrical without pneumatic
Power	100 to 230 VAC, 1kW including PC
Dimensions	Width 958 mm, Depth 1076 mm, Height 1968 mm (with PC folded) Width 1598 mm, Depth 1076 mm, Height 1968 mm (with PC unfolded)
System design	High precision Cartesian gantry
Materials of fabrication	Granite table
Net weight	850 kg

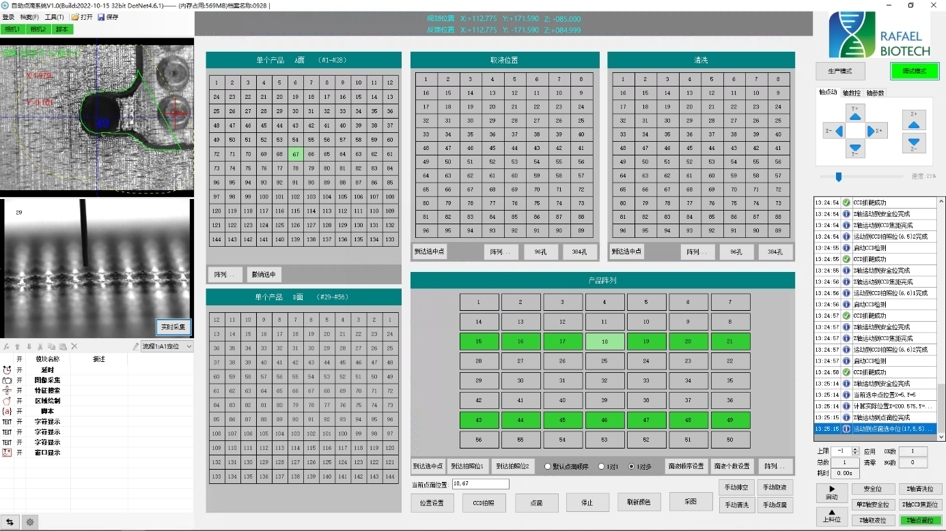

System controller	PC workstation with Microsoft Windows 10® operation system included
